Grünbaum & Shephard, Figure 1.3.5

See also El-Said & Parman, Figure 49 and Plate 26.

This pattern is a member of an interesting class of mathematical patterns. PP Class 110, [p6,c6,c2], IH Class 34.

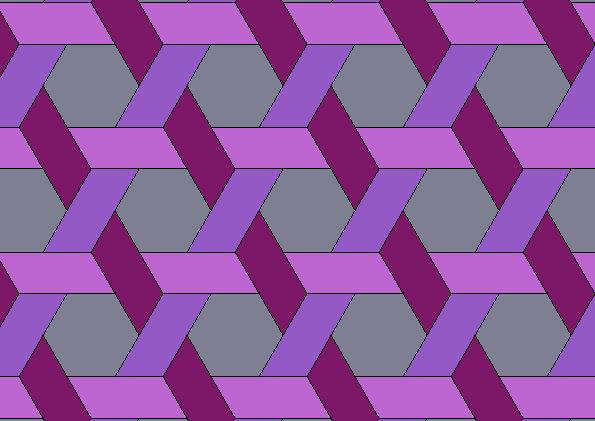

Statistics on this tiling:

• Tiling has symmetry p6.
• Tiling has 4 polygons and 24 edges.
• Edges are completely connected.
• Tiling is not edge-to-edge.
• Tiling satisfies the two-polygon condition.
• Internal angles a multiple of 60°.
• Contains 3 non-regular polygons of which none have reflective symmetry but none are the reflection of others.
• Contains: one regular hexagon.
• Tiling contains 95 polygons.
