SPHERICAL CAPS ON A SPHERE TERUHISA SUGIMOTO and MASAHARU TANEMURA
1 TAMMES PROBLEM AND OUR PROBLEM "How must N congruent nonoverlapping spherical caps be packed on the surface of a unit sphere so that the angular diameter of spherical caps will be as great as possible?" This packing problem is also called the Tammes problem and mathematically proved solutions have been known for N=1,...,12 and 24. On the other hand, the problem "How must the covering of a unit sphere be formed by N congruent spherical caps so that the angular radius of the spherical caps will be as small as possible?" is also important. It can be considered that this problem is dual to the problem of packing of Tammes. Among the problems of packing and covering on the spherical surface, the Tammes problem is the most famous. However, the systematic method of attaining these solutions has not been given. In this study, we would like to think of the covering in connection with the packing problem. Namely, we consider the covering of the spherical caps such that none of them contains the center of another one in its interior. Such a set of centers is said to be a Minkowski set. Hereafter, we call the condition of Minkowski set of centers "Minkowski condition." If angular radii of spherical caps which cover the unit sphere under the Minkowski condition are concentrically reduced to half, the resulting spherical caps do not overlap. Then, our purpose in this study is to obtain the upper bound (not the lower bound !) of angular radius of spherical caps which cover the unit sphere under the Minkowski condition. Suppose we have N congruent open spherical caps with angular
radius r on the surface S of the unit sphere and suppose
that these spherical caps cover the whole spherical surface without any
gap under the Minkowski condition. Further we suppose that the spherical
caps are put on S sequentially in the manner which is described
just below. Let C_{i} be the ith open spherical
cap and let M_{i} be its center (i=1,...,N).
Our problem is to calculate the upper bound of r for the sequential
covering, such that N congruent open spherical caps cover the whole
spherical surface S under the condition that M_{i}
is set on the perimeter of
C_{i}1, and that each area of
set becomes maximum in
sequence for i=2,...N1. In this study, we calculate the
upper bound of r for N=2,...,12 theoretically; the case N
= 1 is selfevident. It is shown in this study that the solutions of our
problem are strictly correspondent to those of the Tammes problem for N=2,...,12..
2 RESULTS AND CONSIDERATION The results of our problem for N=2,...,12 are shown in Table 1. According to our method that the centers of spherical caps are chosen on the perimeters of other spherical caps under the Minkowski condition, the covering with spherical caps of angular radius r is correspondent with the packing with halfcaps (the spherical cap whose angular radius is r/2 and which is concentric with that of the original cap). Let us suppose the centers of N halfcaps are placed on the positions of the centers of spherical caps C_{i} (i=1,...,N) which are considered. At this time, we get the packing with N congruent halfcaps. Then, for N=2,...,12, we find that the upper bound of angular radius of our problem with N congruent spherical caps and the value of angular diameter of Tammes problem with N congruent spherical caps are equivalent. Accordingly, we find that the fact that the results of our problem are coincident with those of Tammes problem about N=2,...,12 at least. Especially, we obtained the exact value of r_{10} for N = 10, whereas Danzer has obtained the approximate range [1.154479, 1.154480] of angular diameter for N = 10. Futher, Schütte, van der Waerden, and Danzer have solved the Tammes problem for N = 7, 8, 9, 10, and 11 through the consideration on irreducible graphs obtained by connecting those points, among N points, whose spherical distance is exactly the minimal distance. Then, after establishing the theorem which states that such irreducible graphs can only have triangles and quadrangles, Schütte, van der Waerden, and Danzer proved and obtained the minimal distance r for respective values of N = 7, 8, 9 and 10. Further, they need the independent considerations for N = 7, 8, 9, 10, and 11, respectively. In contrast to this, we presented in this study a systematic method which is different from the approach by Schütte, van der Waerden, and Danzer. Namely, our method is able to obtain a solution for N by using the results for the case N1 or N2 successively. In addition, we have considered the packing problem from the standpoint of sequential covering. The advantages of our approach are that we only need to observe uncovered region in the process of packing and that this uncovered region decreases step by step as the packing proceeds. At least, in the cases of N£12, the solutions of Tammes problem can be found by our method. However, we may say that our method has not necessarily given a mathematical rigorous proof about our result. Table 1: Our Upper Bound r_{N}.

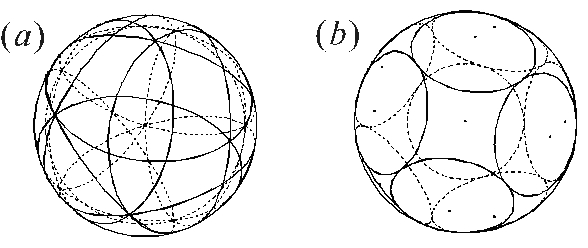

Fig. 1: (a) Our sequential Covering for N = 10. (b) Our solution of Tammes problem for N = 10.
Acknowledgements The research was partly supported by the GrantinAid for Scientific
Research (the GrantinAid for JSPS Fellows) from the Ministry of Education,
Culture, Sports, Science, and Technology (MEXT) of Japan.
References Fejes Tóth, L., (1972) Lagerungen in der Ebene, auf der Kugel und im Raum, 2nd ed, SpringerVerlag, Heidelberg. Fejes Tóth, L., (1999) Minkowski Circle Packings on the Sphere, Discrete & Computational Geometry, 22, 161166. Schütte, K. and van der Waerden, B. L., (1951) Auf welcher Kugel haben 5, 6, 7, 8, oder 9 Punkte mit Mindestabstand Eins Platz?, Mathematische Annalen, 123, 96124. Sugimoto, T. and Tanemura, M., (2001) Random Sequential Covering of a Sphere with Identical Spherical Caps, Forma, 16, 209212. Sugimoto, T. and Tanemura, M., (2001) Covering of a Sphere with Congruent Spherical Caps Under the Condition of Minkowski Set, Research Memorandum, ISM, 817. Sugimoto, T. and Tanemura, M., (2002) Sphere Covering under the Minkowski Condition, Research Memorandum, ISM, 857. Sugimoto, T. and Tanemura, M., (2003) Packing of 10, 11, and 12 Congruent Caps on a Sphere, Research Memorandum, ISM, 877. Sugimoto, T. and Tanemura, M., (2003) Packing and Minkowski Covering of Congruent Spherical Caps on a Sphere, Research Memorandum, ISM, 901. Sugimoto, T. and Tanemura, M., (2004) Packing and Minkowski
Covering of Congruent Spherical Caps on a Sphere, under submission.
