The imitation of the three-dimensional arts of plaiting, weaving and basketry was the origin of interlaced and knotwork interlaced designs. There are few races who have not used it as a decoration of stone, wood and metal. Interlacing rosettes, friezes and ornaments are to be found in the art of most peoples surrounding the Mediterranean, the Black and Caspian Seas, Egyptians, Greeks, Romans, Byzantines, Moors, Persians, Turks, Arabs, Syrians, Hebrews, and with African tribes. Highlights are Celtic interlacing knotworks, Islamic layered patterns and Moorish floor and wall decorations.

Their common geometrical construction principle, discovered by P.Gerdes, is the use of (two-sided) mirrors incident to the edges of a square, triangular or hexagonal regular plane tiling, or perpendicular to its edges in their midpoints. In the ideal case, after the series of consecutive reflections, the ray of light reaches its beginning point, defining a single closed curve. In other cases, the result consists of several such curves.

105Kb


For example, to the Celtic designs from G.Bain book "Celtic Art" correspond the following mirror-schemes:

13Kb

Trying to discover their common mathematical background, they appear two questions: how to construct such a perfect curve - a single line placed uniformly in a regular tiling, this means, how to arrange the set of mirrors generating it, and how to classify the curves obtained. In principle, any polyomino (polyiamond or polyhexe) with mirrors on its border, and two-sided mirrors between cells or perpendicular to the internal cell-edges in their midpoints, could be used for the creation of the corresponding curves.

15Kb

For their construction in some polyomino (polyiamond or polyhexe), we propose the following method. First, we construct all the different curves in it without using internal mirrors, starting from different cell-edge midpoints and ending in them, till the polyomino is exhausted, i.e. uniformly covered by k curves. After that, we may use "curve surgery" in order to obtain a single curve, according to the following rules:

  • * any mirror introduced in a crossing point of two distinct curves connects them into one curve;
  • * depending on the position of a mirror, a mirror introduced into a self-crossing point of an (oriented) curve either does not change the number of curves, or breaks the curve into two closed curves.
  • 2Kb

    In every polyomino we may introduce k-1, k, k+1,..., 2A-P/2 internal two-sided mirrors, where A is the area and P is the perimeter of the polyomino. Introducing the minimal number of mirrors k-1, we first obtain a single curve, and in the next steps we try to preserve that result.

    In the case of a rectangular square grid RG[a,b] with the sides a, b, the initial number of curves, obtained without using internal mirrors is k = gcd(a,b) (greatest common divisor), so in order to obtain a single curve, the possible number of internal two-sided mirrors is k-1, k,..., 2ab-a-b. According to the rules for introduction of internal mirrors, we propose the following algorithm for the production of monolinear designs: in every step, each of the first internal k-1 mirrors must be introduced in crossing points belonging to different curves. After that, when the curves are connected and transformed into a single line, we may introduce other mirrors, taking care about the number of curves, according to the rules mentioned. For example:

    4Kb

    The symmetry of such curves is used for the classification of the Celtic frieze designs by P.Cromwell, and for the reconstruction of Tamil designs by P.Gerdes.

    6Kb

    From the ornamental heritage, at first glance appears that symmetry is the mathematical basis for their construction and possible classification. But, the existence of such asymmetrical curves suggests another approach.

    First criterion that we may use is geometrical one: two curves are equal iff there is a similarity transforming one into the other. This means, that one curve can be obtained from the other by a combined action of a proportionality and isometry. Instead of considering curves, we may consider the equal mirror arrangements defined in the same way. Having the algorithm for the construction of such perfect curves and the criterion for their equality, we may try to enumerate them: to find the number of all different curves (i.e. mirror arrangements) which can be derived from a rectangle with the sides a, b, for a given number of mirrors m (m = k-1, k, ..., 2ab-a-b).

    The other point of view to the classification of such perfect curves is that of knot theory. Every such curve can be simply transformed into an interlacing knotwork design, this means, into the projection of some alternating knot.

    The construction of mirror curves described before is not dependent from the metrical properties or from the geometry of the surface, so the same principle of construction can be applied to any tiling (e.g., on a sphere or in the hyperbolic plane). Let any edge-to-edge tiling of a part of any surface be given. After connecting midpoints of adjacent edges, we obtain a 4-regular graph. Using the rules for the introduction of mirrors, it can be converted in a single mirror curve. Open question: for any tiling, find a general formula for the number k of curves, before mirrors are introduced.



    Problem: construct a link uniformly covering given part of a tessellation.

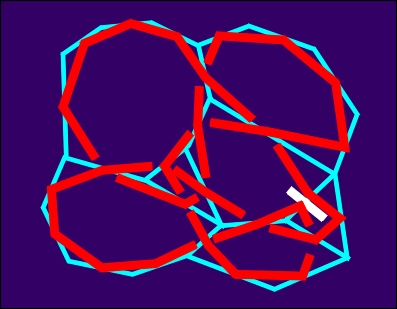

    By connecting the midpoints of adjacent edges we obtain a 4-regular graph.



    Separating the components.



    By introducing two-sided mirrors according to the rules mentioned
    before, we obtain a single mirror-curve.



    In the same way, from those mirror curves we may obtain the corresponding Lunda designs, etc. All non isomorphic Lunda designs on a regular octahedron are given at next figure. Open question: enumerate non-isomorphic Lunda designs obtained from regular polyhedrons.
